Blurred Vision Audio Class D Amplifiers
High powered, Efficient and Professional Rated
Blurred Vision

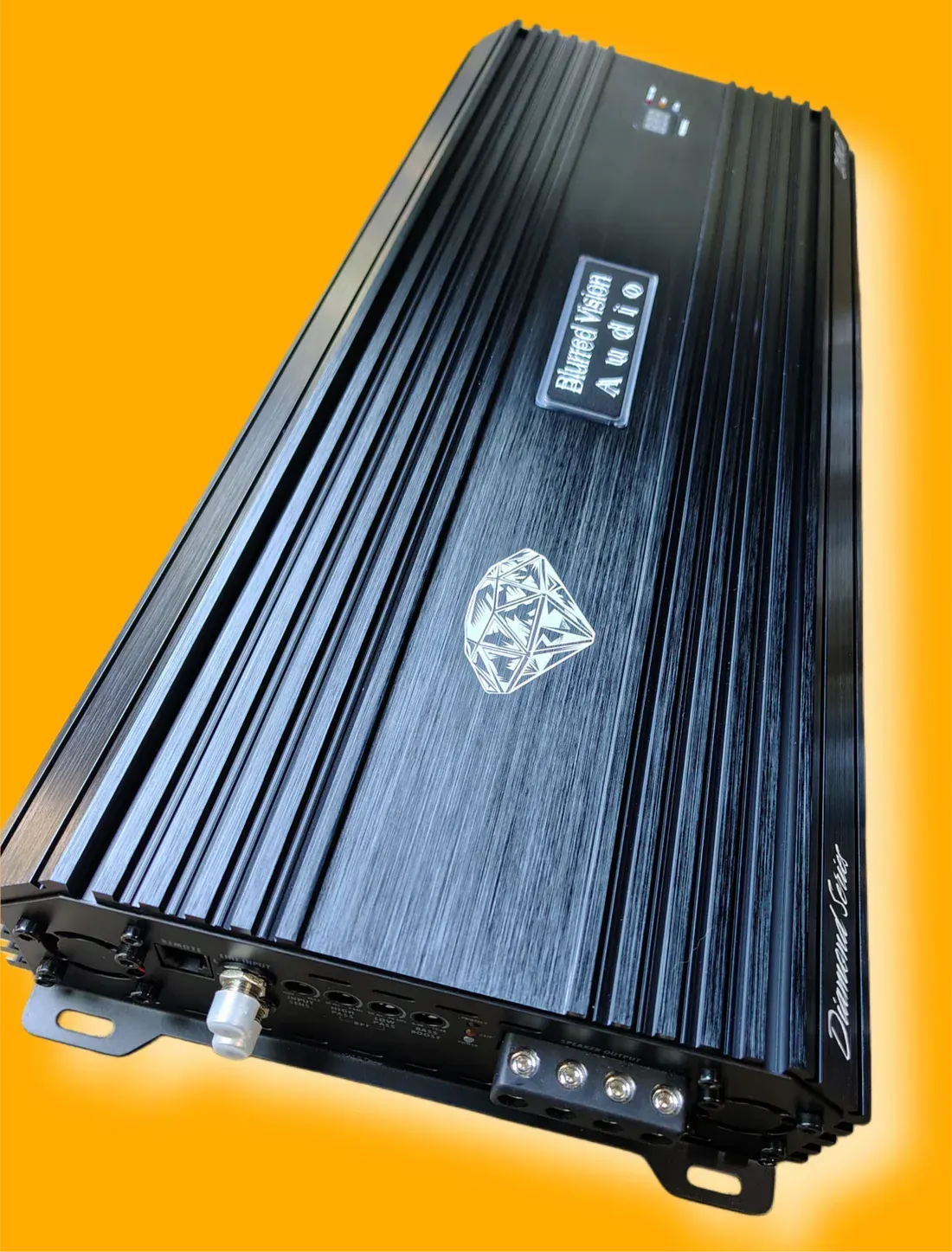

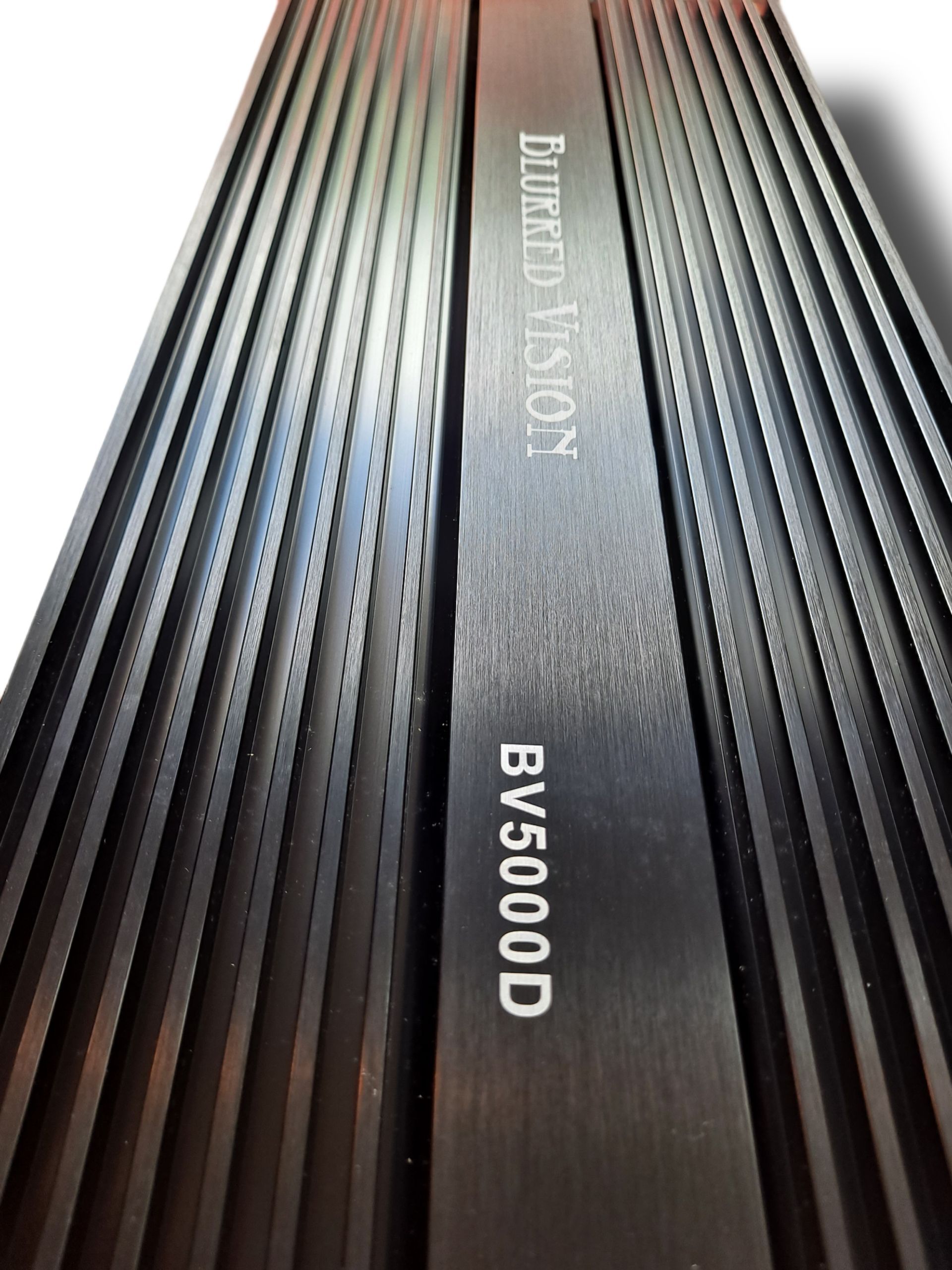

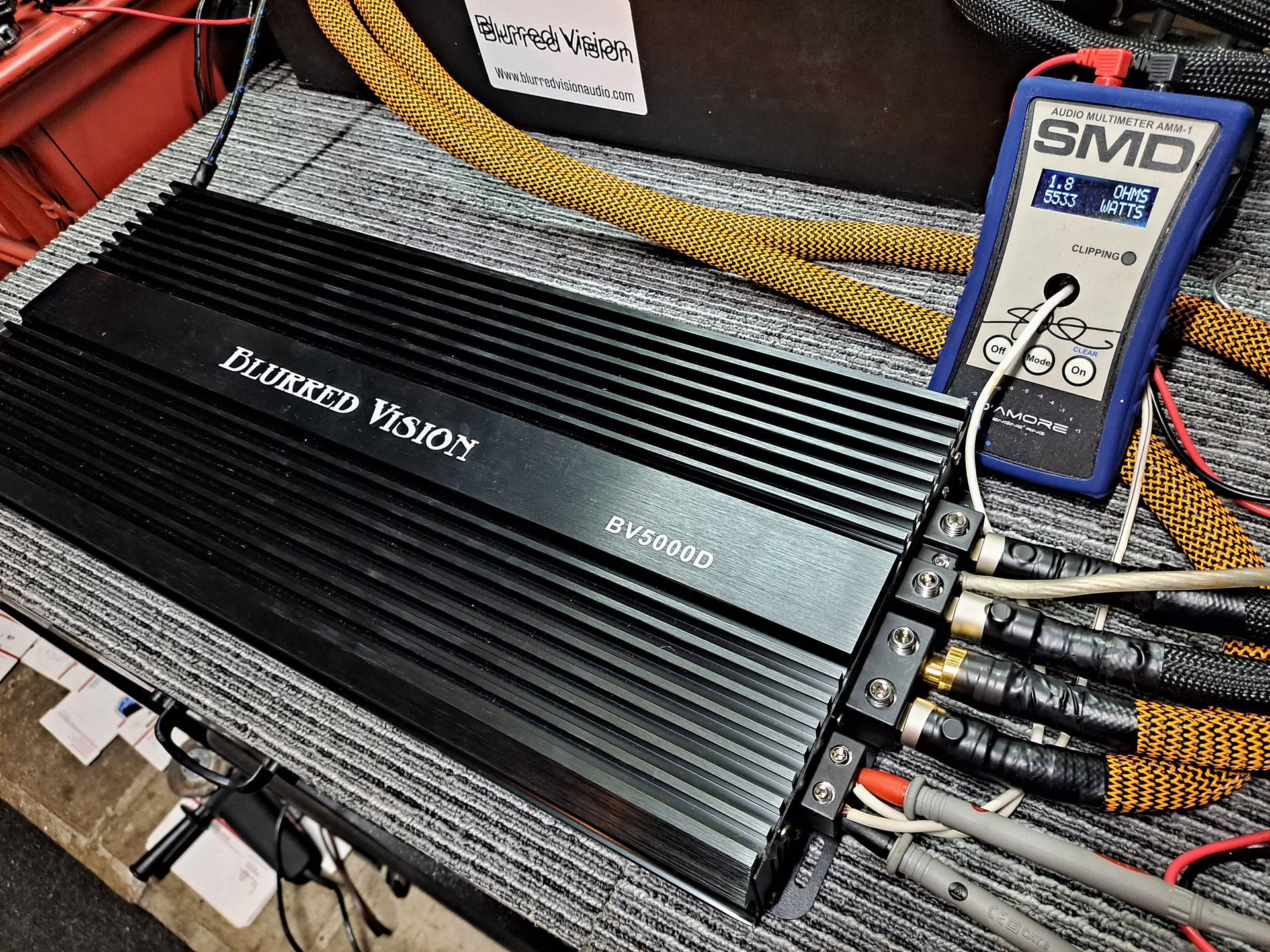

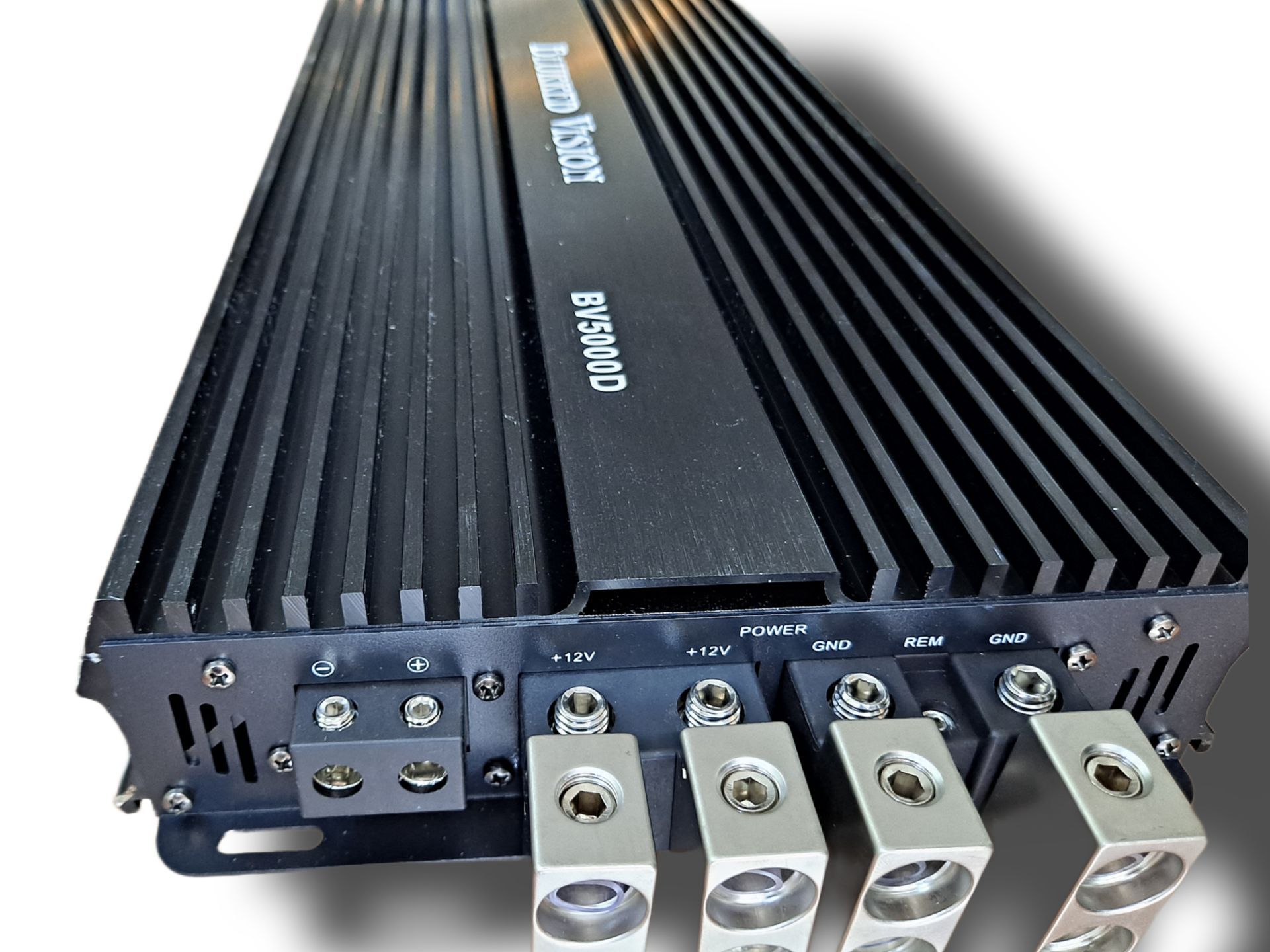

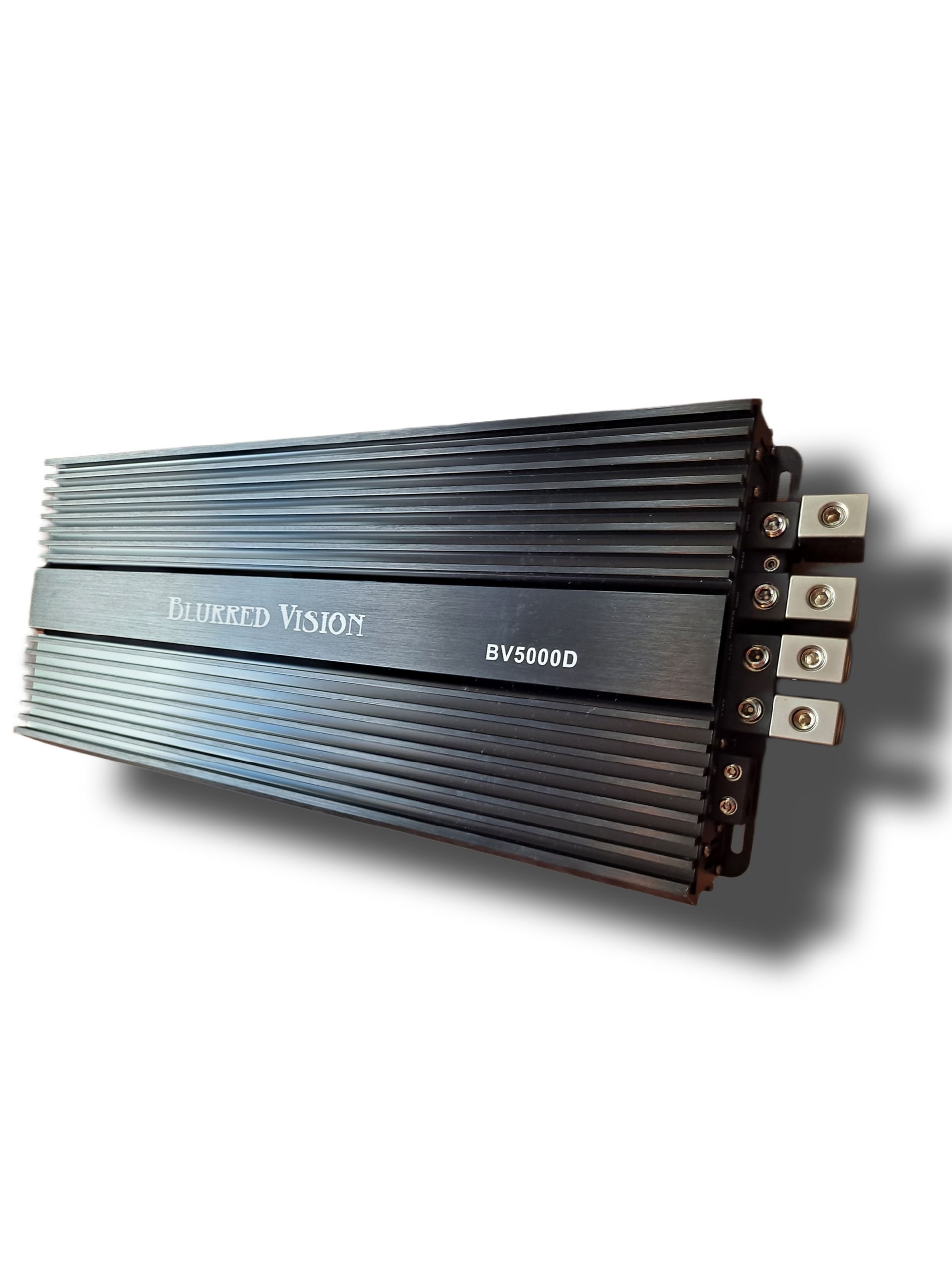

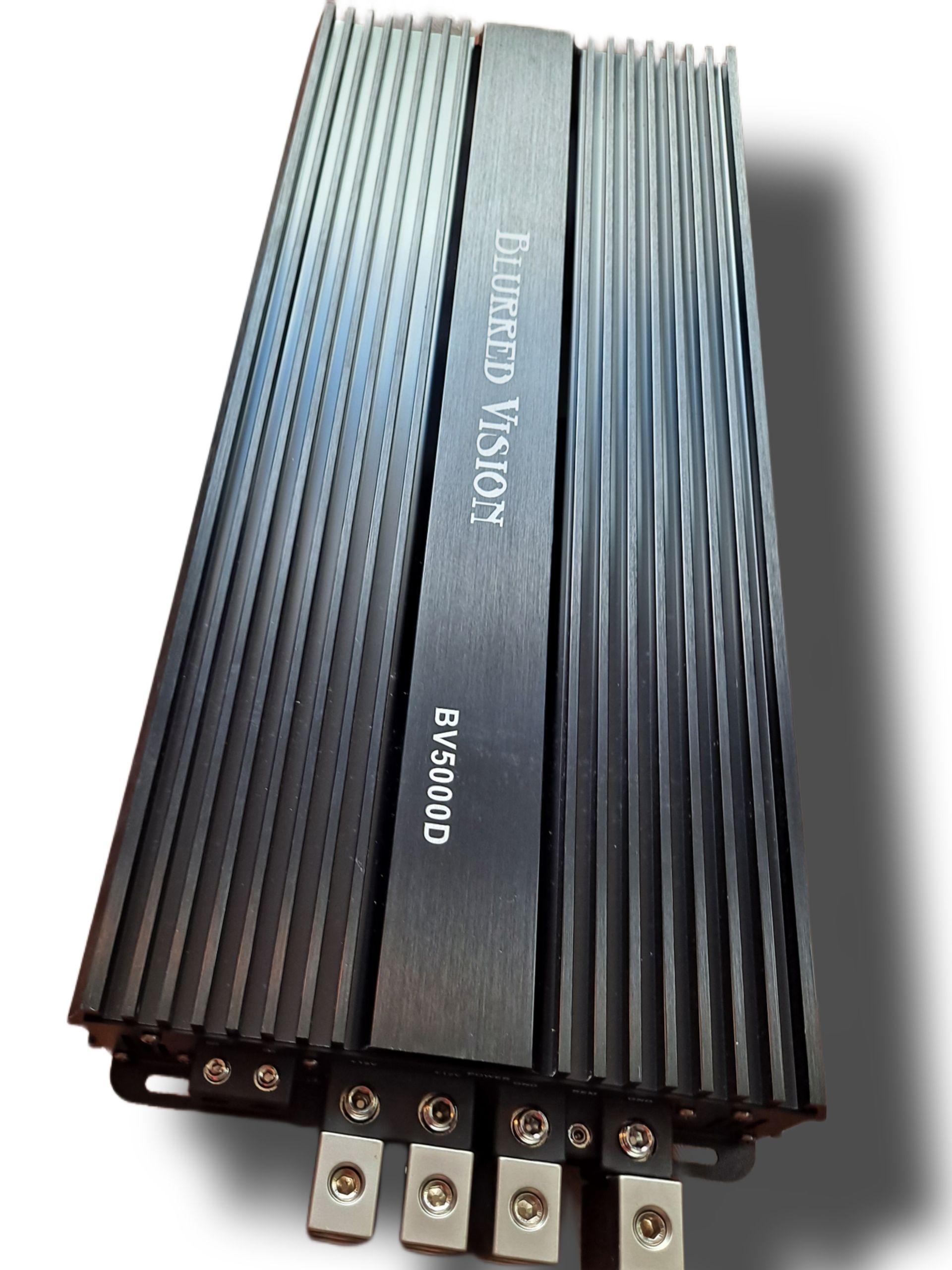

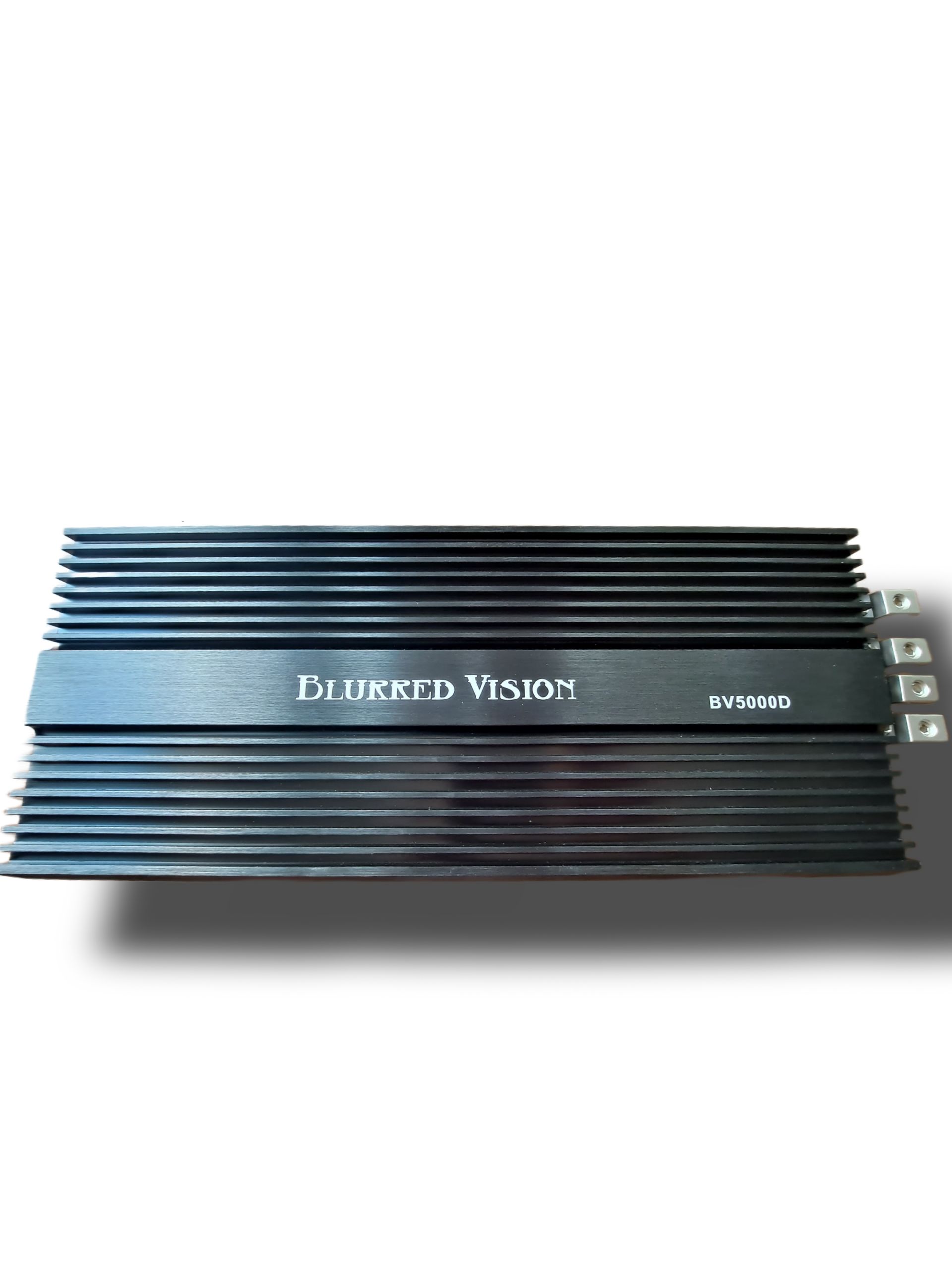

BV5000.1D
Blurred Vision Audio Bv-5000.1 -
Introducing the Blurred Vision Audio BV5000.1D, with a RMS power of 5000W, this amplifier is perfect for powering your car audio system. The Blurred Vision Audio BV5000.1D is designed to provide high-quality audio performance while minimizing distortion, and its sleek design will add a touch of style to your car interior.
This amplifier is a great choice for anyone looking to upgrade their car audio system, whether you're a professional installer or a DIY enthusiast. With its advanced features and powerful performance, the Blurred Vision Audio BV5000.1D is sure to impress. Don't miss out on this opportunity to take your car audio system to the next level.
Blurred Vision Audio
Model: BV5000.1D

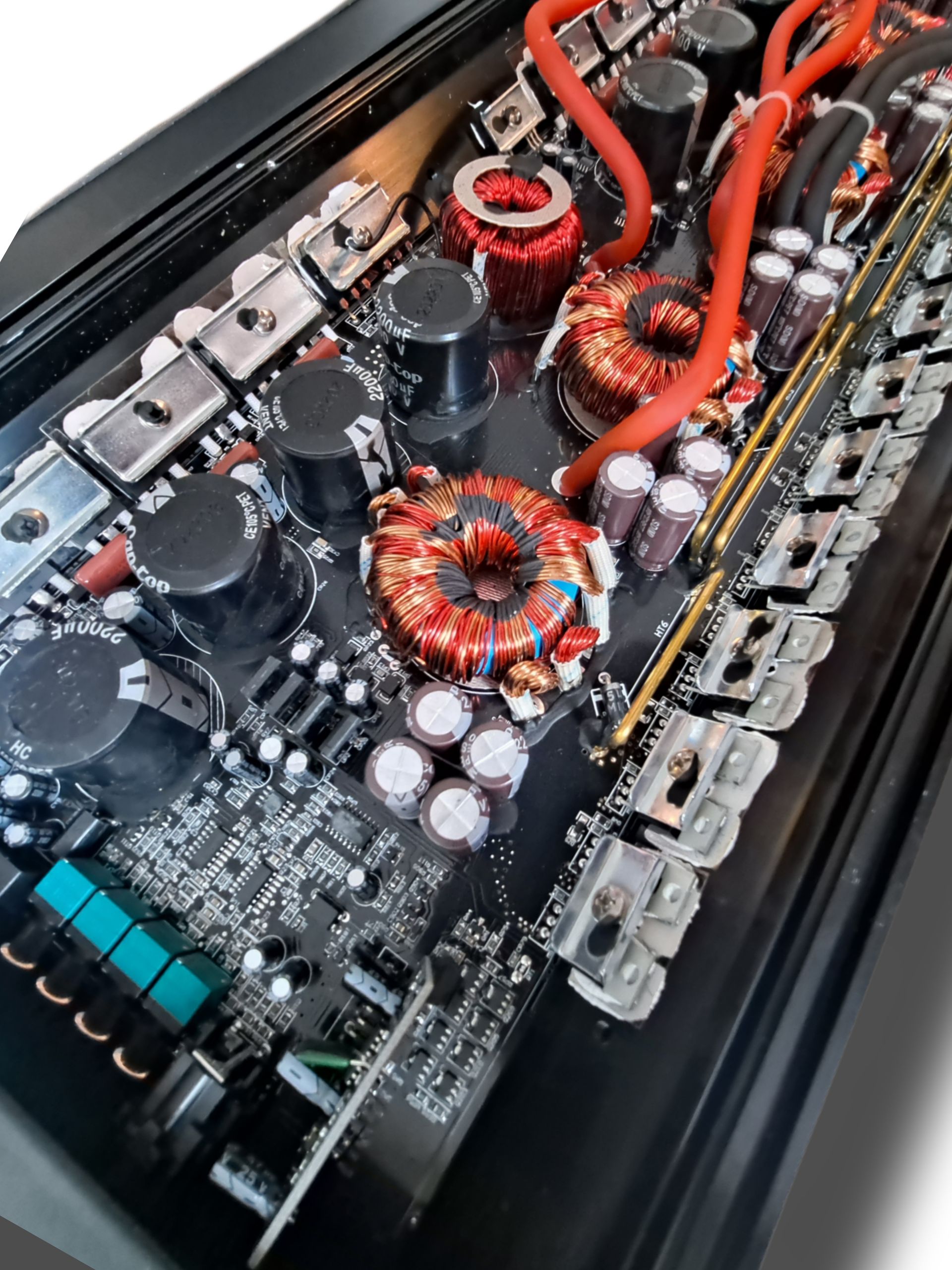

Half Bridged Korean Board
Full Range Class D Korean technology Design can run your subwoofers to this amplifier or even a ton on midrange and highs off this amplifier!!
Number of Channels: 1(Mono)
Frequency Response: 10 - 200 Hz
1 Ohm RMS Power 5000W(14.4V)
2 Ohm RMS Power 3000W(14.4V)
4 Ohm RMS Power 1600W(14.4V)
1 Ohm RMS Power 6200W(16V)
2 Ohm RMS Power 3250W(16V)
Minimum Permissible Load on the Channel: 1 Ohm

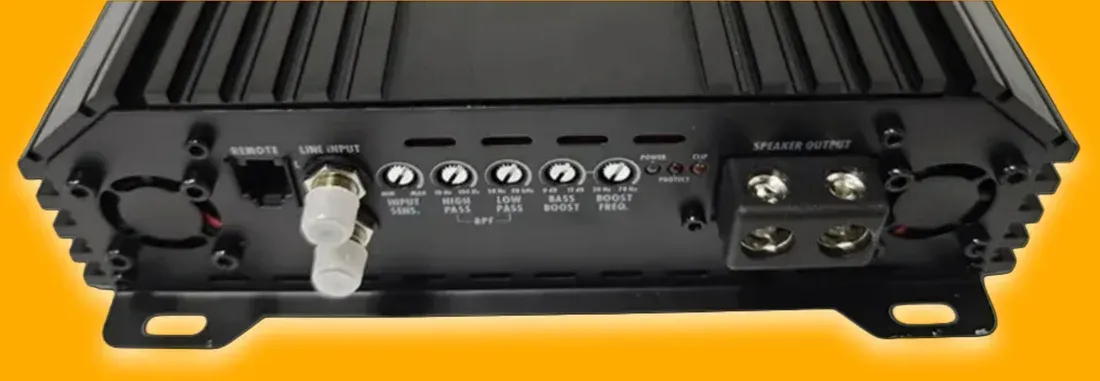

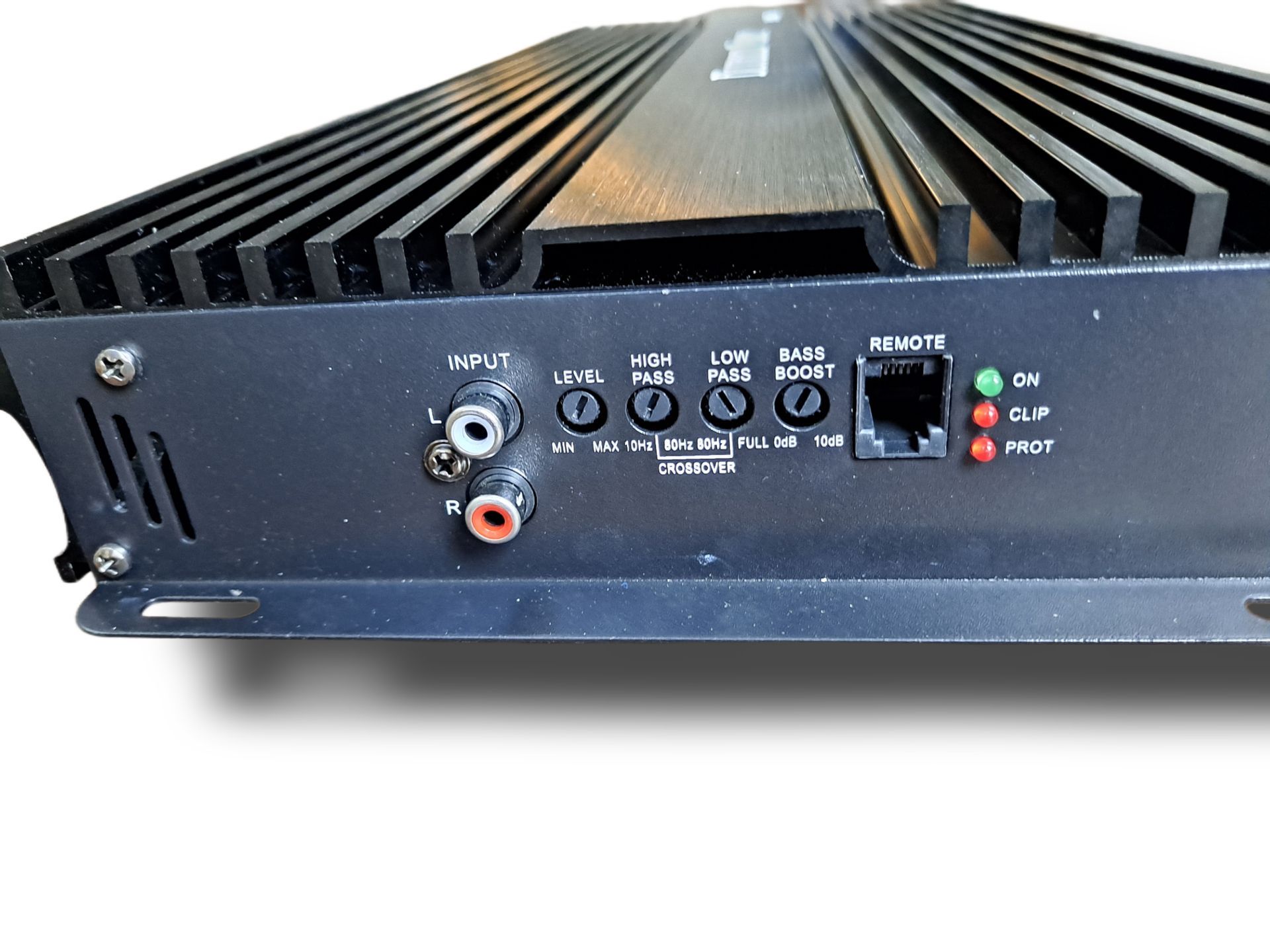

For those who use the amplifier with internal active filters without processor, here the frequency cuts
LPF: from 80hz to full (disabled)
HPF: from 10 to 80hz
Crossover: 24 dB/Oct
Clipping Light Indicator
Input Terminal: 2x 1/ Ga
Output Terminal: 8 Ga
Working Voltage: 9 - 16V
Signal-to-Noise Ratio: â 87 dB
Bass boost: +0-10db
500 Amp Fuse Required!
Fuse is NOT Included!

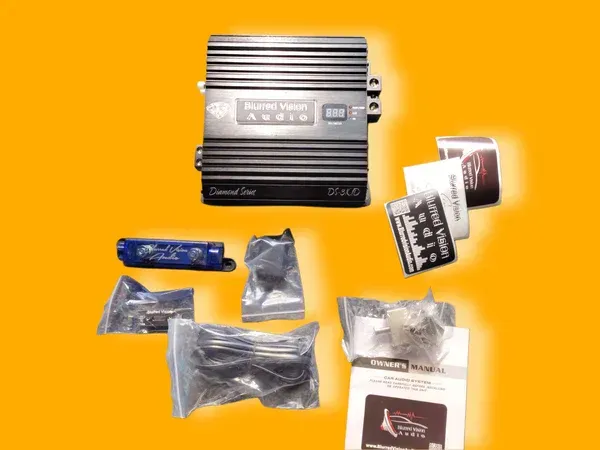

The amplifier is provided with 3.5mm Bass remote control,Allen key, stickers and the manual Decals 2x Dual Inputs T Shirt

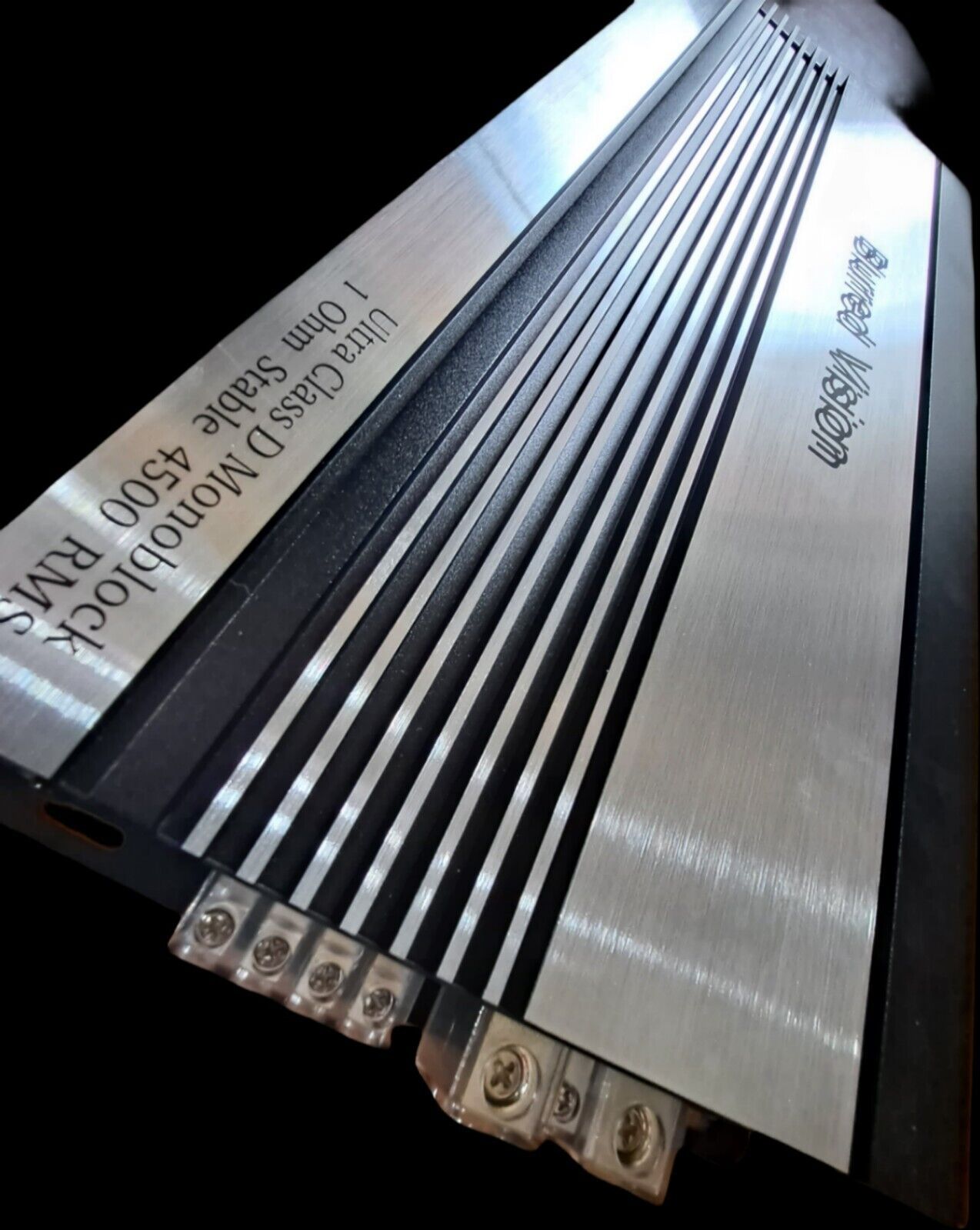

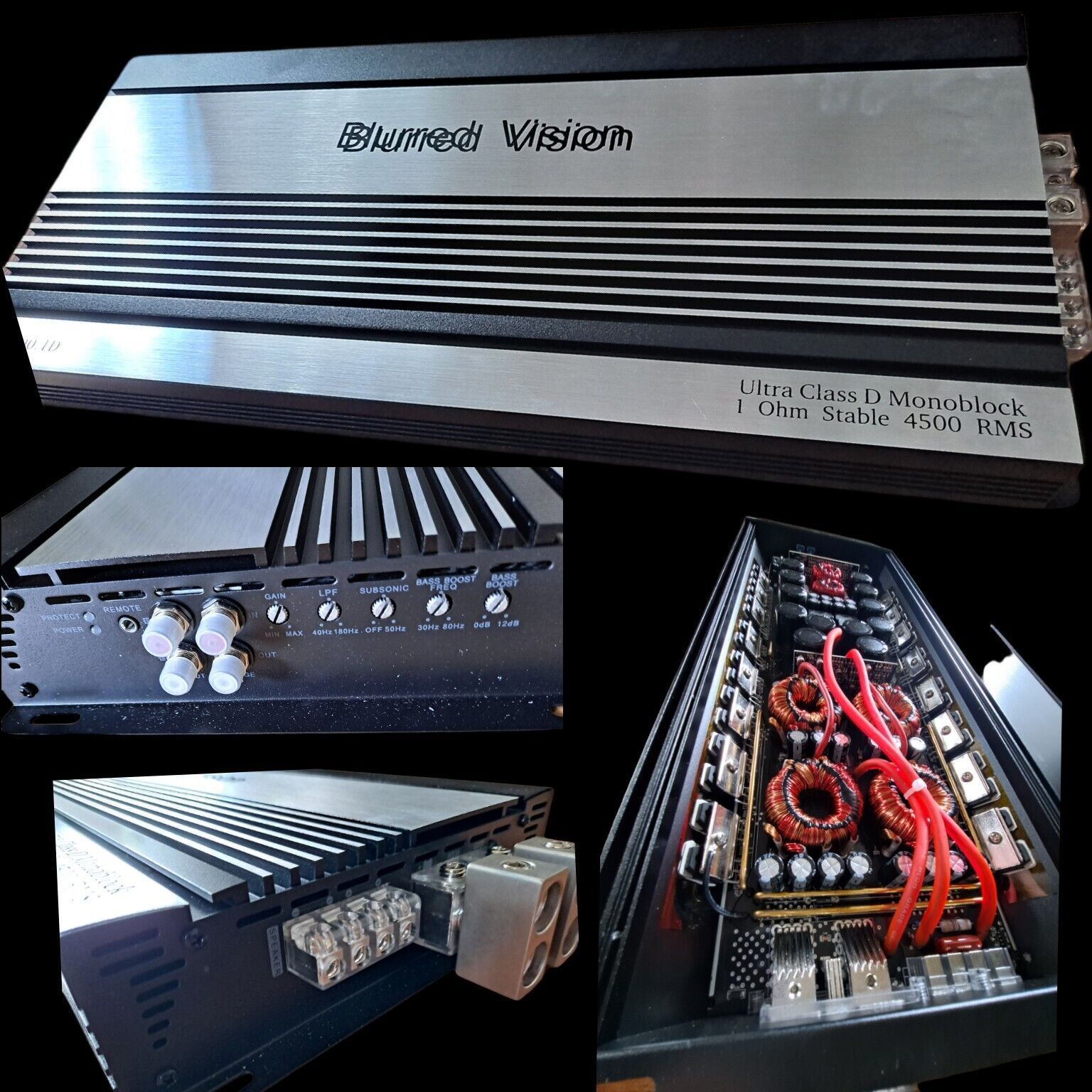

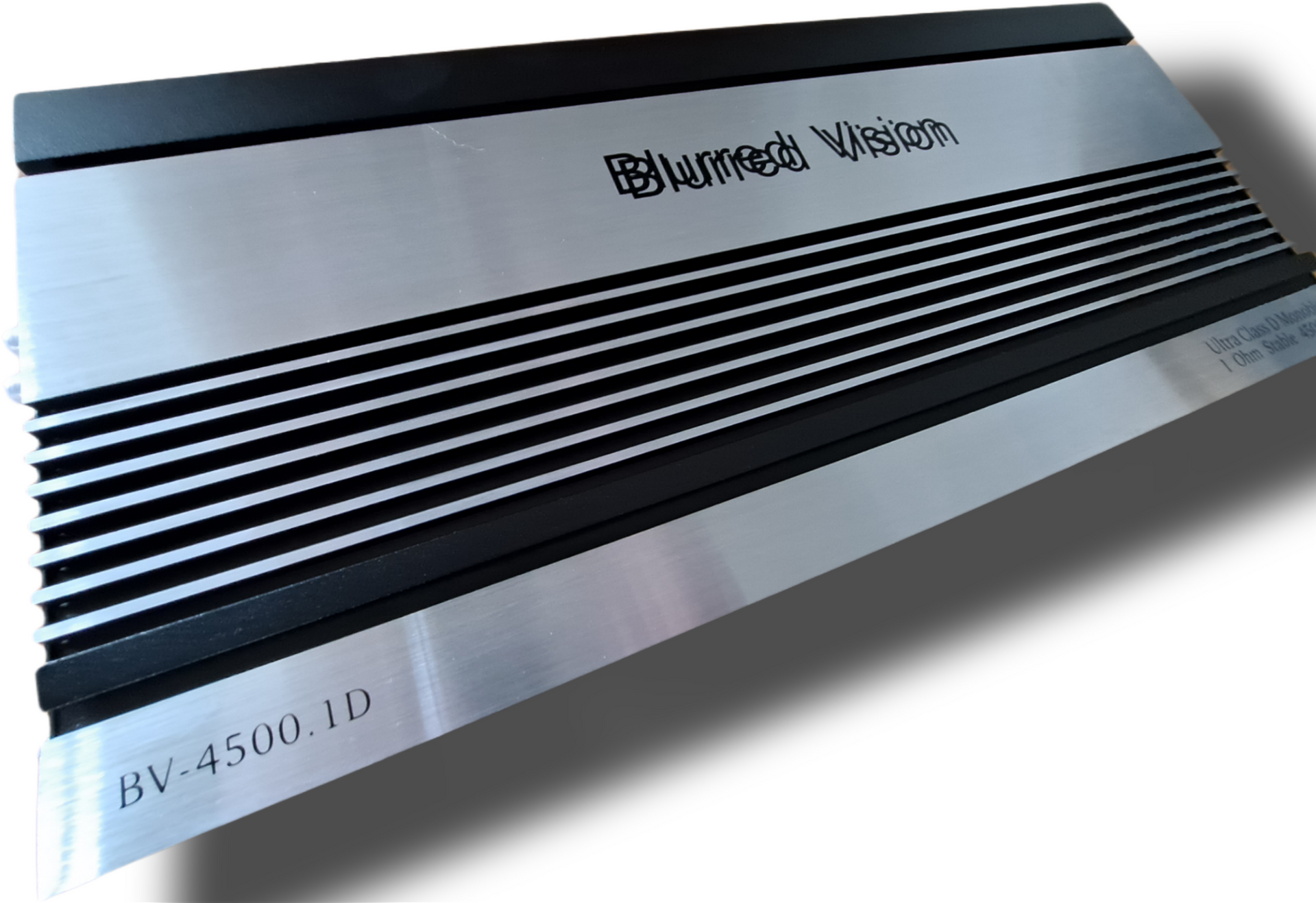

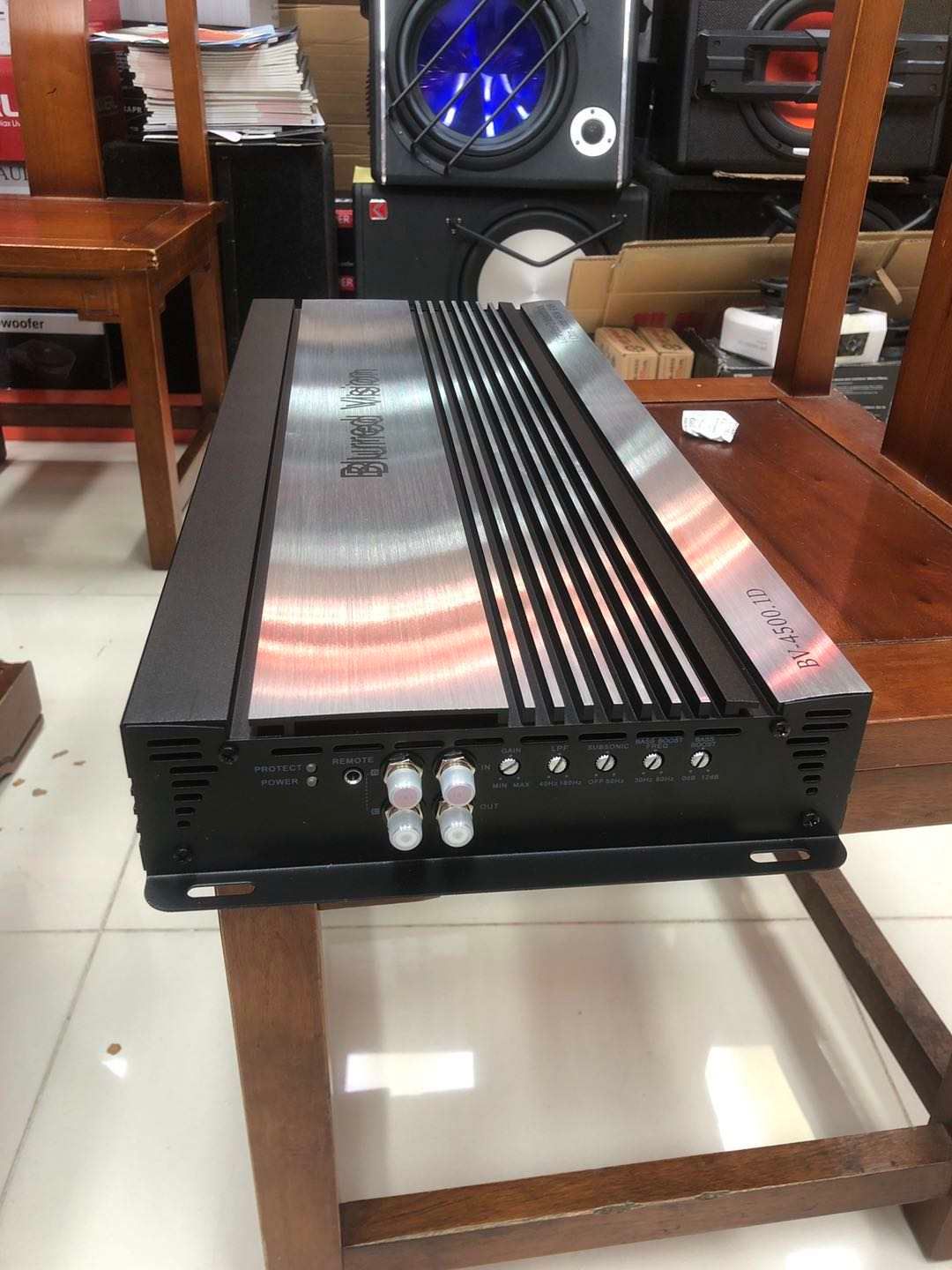

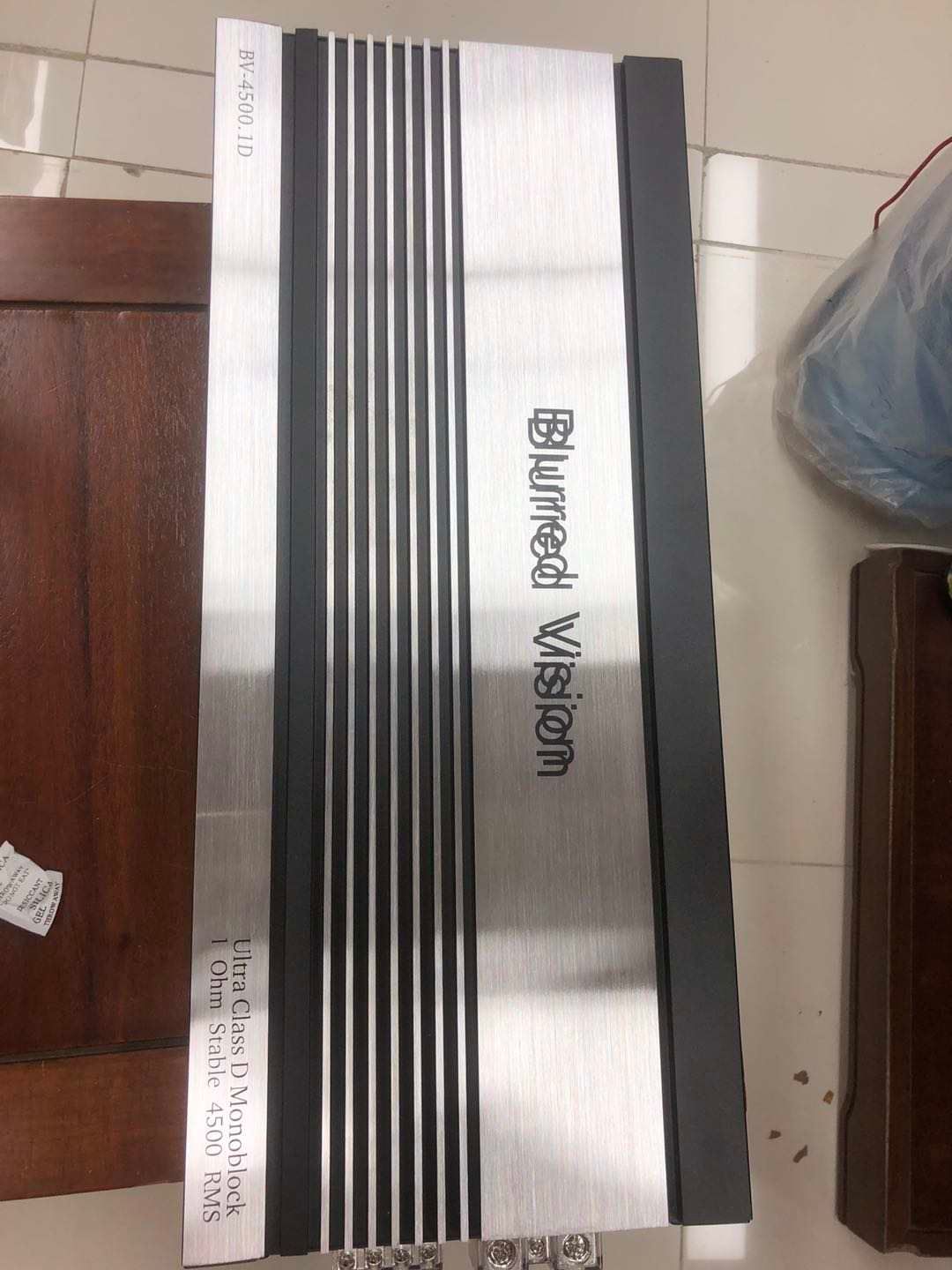

Blurred Vision Audio BV4500.1D
Blurred Vision Audio BV-4500.1D
Introducing the Blurred Vision Audio BV4500.1D, car amplifier. Half Bridged korean board With a RMS power of 4500W, this amplifier is perfect for powering your car audio system. The Blurred Vision Audio BV4500.1D is designed to provide high-quality audio performance while minimizing distortion, and its sleek design will add a touch of style to your car interior.
This amplifier is a great choice for anyone looking to upgrade their car audio system, whether you're a professional installer or a DIY enthusiast. With its advanced features and powerful performance, the Blurred Vision Audio BV4500.1D is sure to impress. Don't miss out on this opportunity to take your car audio system to the next level.
Blurred Vision Audio BV-4500.1D
DESCRIPTION
Half Bridged Korean Board Design

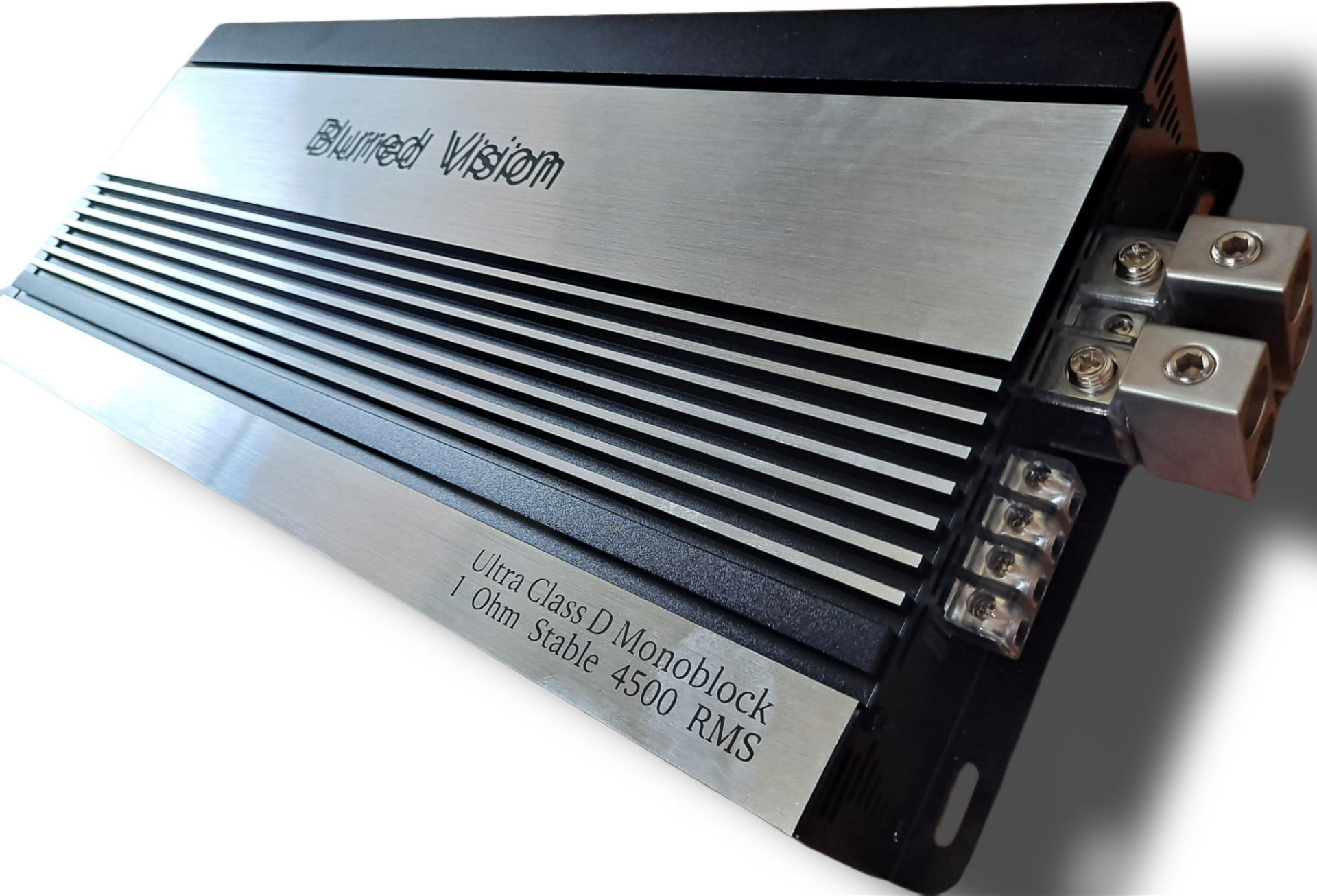

Half Bridge designed Blurred Vision Audio ULTRA CLASS D Monoblock capable of making 4500 watts @ 1 Ohm with EASE!!!
Strappable technology allows 10,000RMS watts @ 1ohm with 2 of these strapped together.
Power: 5500w RMS@ 1 ohm at 15.5v
Power: 4500w RMS @ 1 ohm at 14.4v
Power: 3000w RMS @ 2 ohm at 14.4v
Power: 1500w RMS @ 4 ohm at 14.4v
Frequency Response: 17Hz-180Hz (-3dB)
Tiffany style RCA Jack!
450 Amp Fuse Required!(sold separately)
Strappable technology allows 10,000RMS watts @ 1ohm with 2 of Blurred Vision Audio BV4500.1 strapped together!!!
Signal Noise Ratio: 90dB
0.1%Fuse RatingExternal 450 amp
Input Sensitivity: 20,000 Ohms
Input Sensitivity: 100MV-6V
T.H.D. : <0.05%
Bass Frequency: 30Hz-80Hz
Low Pass Frequency: 40Hz-180Hz
Subsonic: OFF-50Hz
Bass Boost: 0-12dB
Soft on and off anti thump
Laser engraved Blurred Vision logo
3.5 mm bass knob
High End Brushed Polished Aluminum Makes This Amp Sparkel
Weight: 15.00 LBS
Width: 22.50 (in)
Height: 9.00 (in)
Depth: 2.25 (in)
Receive just item listed
Free pair dual 1/0 inputs! ,T Shirt and Decals
TONS OF REALIABLE POWER PROVEN & TESTED!!!
Blurred Vision Audio KNOCKOUT SERIES Subwoofers
Blurred Vision Audio KNOCKOUT SERIES 12" Subwoofers
Specifications
Model BV-12 or D2*-D4* options
Size 12
Surround Material Foam
Cone Material Carbon
Frame Material Stamped Steel
Magnet Ferrite
Power RMS 1000
Power Peak 2000
Voice Coil Black 3"
VOICE Coil Material BASV (BLACK ALUMINUM FOIL SV COATED)
High End Quality subwoofers!!
Quality You Can Count On!!
Super-Efficient!
Blurred Vision Audio KNOCKOUT SERIES 15" Subwoofers
Specifications
Model BV-15 D2-D4
Size 15
Surround Material Foam
Cone Material Carbon
Frame Material Stamped Steel
Magnet Ferrite
Power RMS 1200
Power Max 2400
Voice Coil Black 3"
VOICE Coil Material BASV (BLACK ALUMINUM FOIL SV COATED)
High End Quality subwoofers!!
Quality You Can Count On!!
Super-Efficient!
Blurred Vision Audio StreetBeats12.4 Subwoofers
For the hard-core installs, the all new Blurred Vision Audio StreetBeats12.4 moves to an even bigger motor for greater motor strength. To keep all things cool inside, we brought back the pole vent allowing air to pass through both ends of the motor. With weaved leads, the StreetBeats12.4 really hammer away for a long time with out showing any signs of wear.
Incorporating a shorting ring into the new model, the StreetBeats12.4 inductance kept in check. For the sound quality side of things, we took a page from the KNOCKOUT SERIES and incorporated a shorting ring to keep inductance in check, as well as moved to a higher roll surround and adjusted suspension for a more Xmax
.Conservatively rated at 1000 rms, the StreetBeats12.4 can really take some power if you want to have some thunderous output. But, at the same time, if you just want to add a smooth and easily blended bassline to your daily driving the StreetBeats12.4 can do it too, even in smaller sealed boxes. With dual Nomex progressive spiders and high roll surround, the this subwoofer has the suspension to really stretch its legs while keeping the moving mass under control
.If you want a class leading sound quality and vision blurring output, but do not want to make your checking account sweat, the StreetBeats12.4 remains the educated choice for people who expect the best
Blurred Vision Audio KNOCKOUT SERIES BV-4STACK8.4 8"
Product Specifications
8”
1100 Watts Power (Peak)
500 Watts Power (R.M.S)
Pressed paper cone
Custom Motor Magnet Sticker
Carbon fiber cone
Custom 1" High roll Foam Surround
XL FLAT SEWN IN TINSEL LEADS
Frequency Response: 30~1.200Hz
Sensitivity: 84.60
2.5" 4-High Temperature Layer Kapton Voice Coil BASV
Powdered Black Die cast Aluminum Basket
Silver Push Spring Loaded Terminals
Diameter: 8-3/4"
Mounting Depth: 6 1/2
Impedance: 2 x 4 Ohms
150 Oz Magnet
12.5 Pounds
Xmax 15
Blurred Vision Audio KNOCKOUT SERIES BV-4STACK6.5.4 6.5"
Product Specifications
6.5"
750 Watts Power (Peak)
350 Watts Power (R.M.S)
Pressed paper Cone
Carbon Fiber Dustcap
Custom Motor Magnet Sticker
Custom .75" High/wide Foam Surround
XL FLAT SEWN FLAT TINSEL LEADS
Frequency Response: 30~1.200Hz
Sensitivity: 84.50
2" 4-High Temperature Layer Kapton Voice Coil BASV
Powdered Black Die Cast Aluminum Basket
Silver Push Spring Loaded Terminals
Diameter: 7"
Mounting Depth: 6 1/2
Impedance: 2 x 4 Ohms
Triple Stacked 150 Oz Magnet
11.5 Pounds
Xmax
Fs 55.524
Drop in Recone kits also available!
!Don't let the size fool you! This little monster will not skip a beat and take any note you can throw at it
!Worry Fre
Every item is tested and inspected before shipping out from our facility! This gives you peace of mind knowing you will recive working items every time you buy no questions!
Blurred Vision Audio KNOCKOUT SERIES BV-3STACK8.4 8"
Product Specifications
8”
750 Watts Power (Peak)
350 Watts Power (R.M.S)
Pressed paper Cone
Carbon Fiber Dustcap
Foam Gasket
Custom High/wide Foam Surround
XL FLAT SEWN FLAT TINSEL LEADS
Frequency Response: 30~1.200Hz
Sensitivity: 84.00
2.5" 4-High Temperature Solid Copper Coil
Stamped Steel Basket
Spade Terminals
Diameter: 7"
Mounting Depth: 5.5"
Impedance: 2 x 4 Ohms
Triple Stacked 112 Oz Magnet
Xmax 8mm
Fs 58.765
Blurred Vision Audio KNOCKOUT SERIES BV-3STACK6.5.4 6.5"
Product Specifications
6.5"
450 Watts Power (Peak)
200 Watts Power (R.M.S)
Pressed paper Cone
Carbon Fiber Dustcap
Foam Gasket
Custom High/wide Foam Surround
XL FLAT SEWN FLAT TINSEL LEADS
Frequency Response: 30~1.200Hz
Sensitivity: 84.50
2" 4-High Temperature Layer Kapton Voice Coil BASV
Stamped Steel Basket
Spade Terminals
Diameter: 7"
Mounting Depth: 6 1/2
Impedance: 2 x 4 Ohms
Triple Stacked 66 Oz Magnet
Xmax 8mm
Fs 63.539
Blurred Vision has laid its roots in high quality audio reproduction through in-house engineering and a dedication to customers satisfaction.
